Promax Mobil 100 (PromaxStar Mobil 100)
Specifications
| SPECIFICATIONS | UN | T/M |
| Plant Capacity | ||
|
Compacted Concrete Capacity
|
m3/h
|
100
|
| Mixer Specifications | ||
|
Mixer Types
|
Horizontal Single Shaft
|
|
|
Mixer Capacity
|
lt
|
2000
|
|
Dry Capacity
|
lt
|
3000
|
|
Motor Power
|
kW
|
2×37
|
| Aggregate Hopper | ||
|
4 Bins
|
m3
|
4×15
|
| Mixer Conveyor Band | ||
|
Length
|
mm
|
1000
|
|
Height
|
mm
|
13000
|
|
Motor Power
|
kW
|
22
|
| Weighbridges | ||
|
Aggregate Weighing Group
|
kg
|
5000
|
|
Cement Weighing Group
|
kg
|
1400
|
|
Water Weighing Group
|
lt
|
700
|
|
Additives Weighing Group
|
kg
|
40
|
| Cement Silo and Screw Conveyor | ||
|
Diameter ø
|
mm
|
273
|
|
Length
|
mm
|
11500
|
|
Motor Power
|
kW
|
15
|
| Fixed Cement Silo | ||
|
Capacity (Welded or Bolted)
|
ton
|
75-100-200
|
|
Silo Quantity
|
adet
|
1,2,3,4
|
|
Screw Conveyor
|
273x11500mm 15Kw
|
|
| Air Compressor | ||
|
Capacity (Welded or Bolted)
|
lt/dak
|
1360
|
|
Working Pressure
|
bar
|
7-8
|
|
Motor Power
|
kW
|
5,5
|
| Water Pump | ||
|
Pump
|
m3/h
|
80
|
|
Motor Power
|
kW
|
11
|
| Feeding Unit | ||
|
Bunker Capacity
|
m3
|
5
|
|
Length
|
mm
|
800
|
|
Width
|
mm
|
18000
|
|
Motor Power
|
kW
|
18.5
|

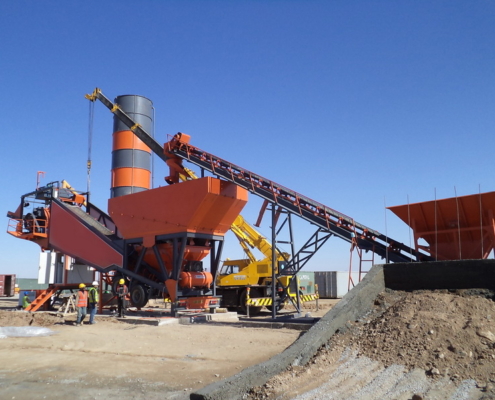

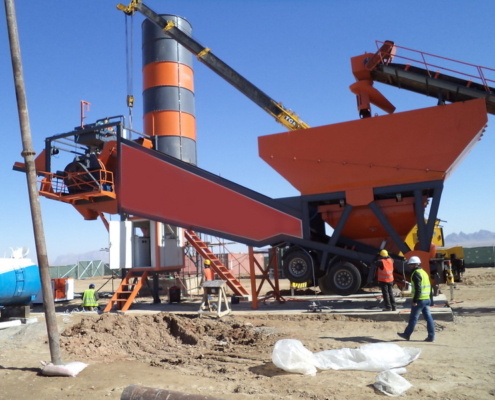

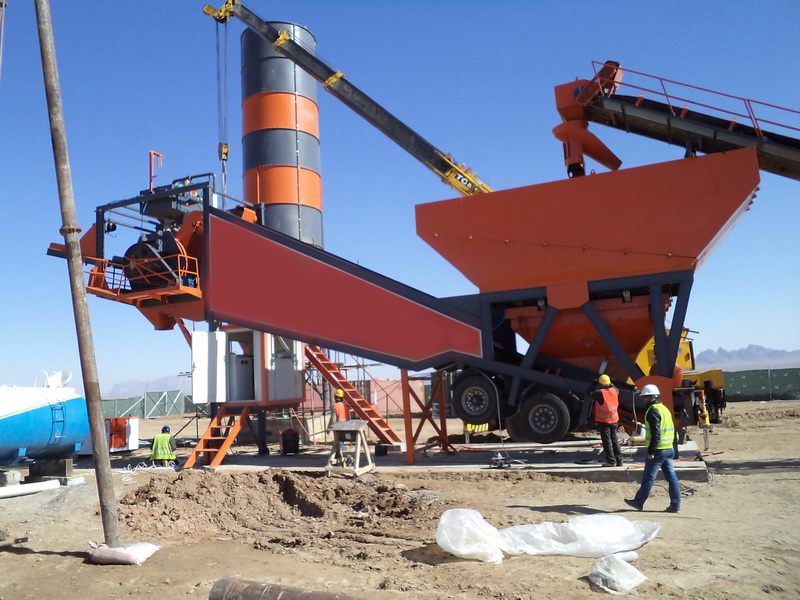

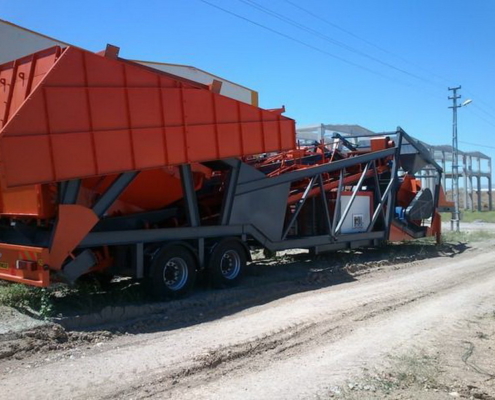

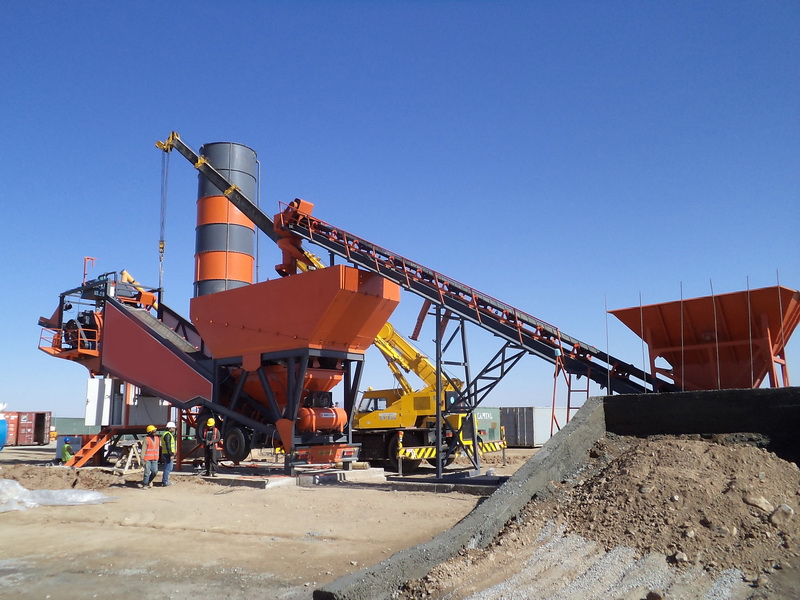

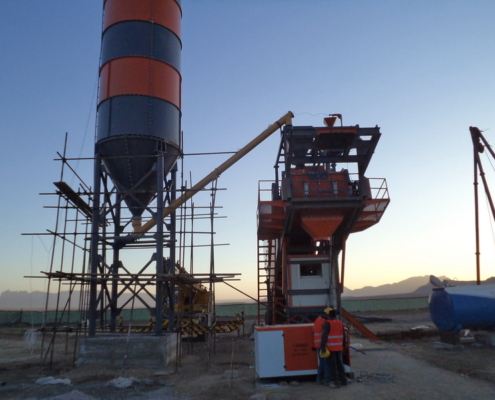

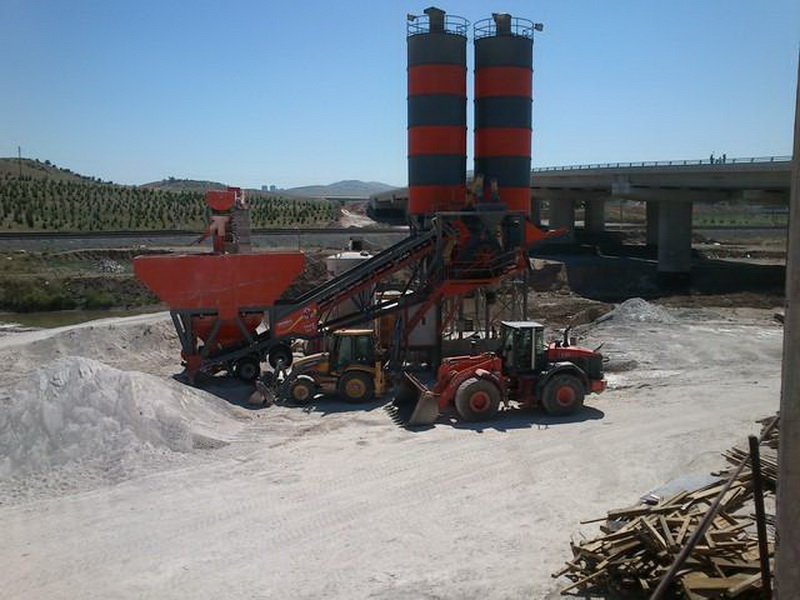

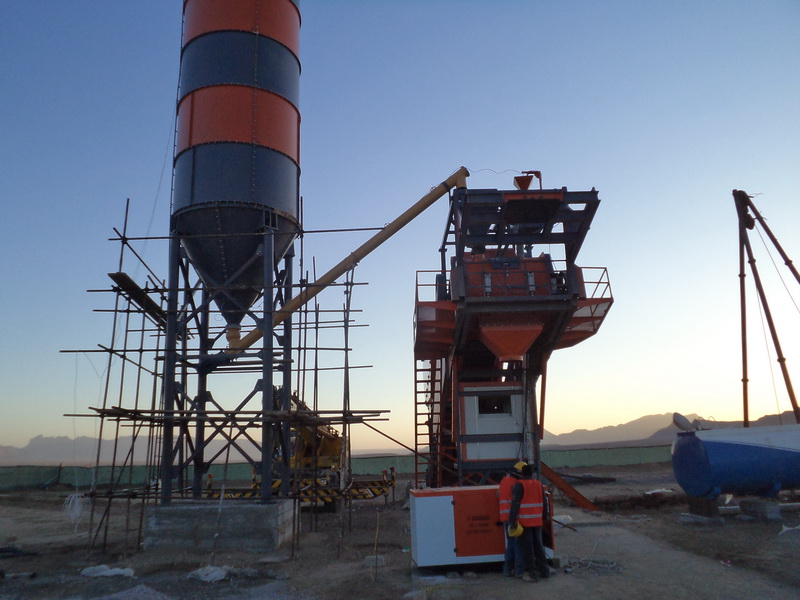

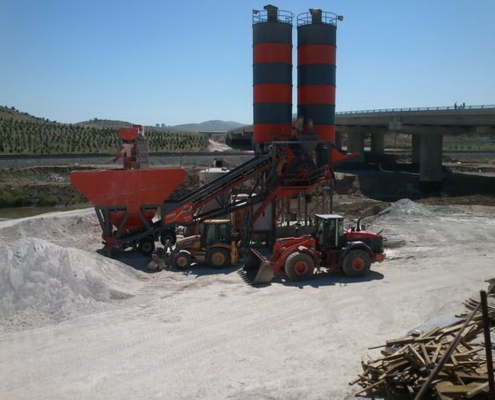

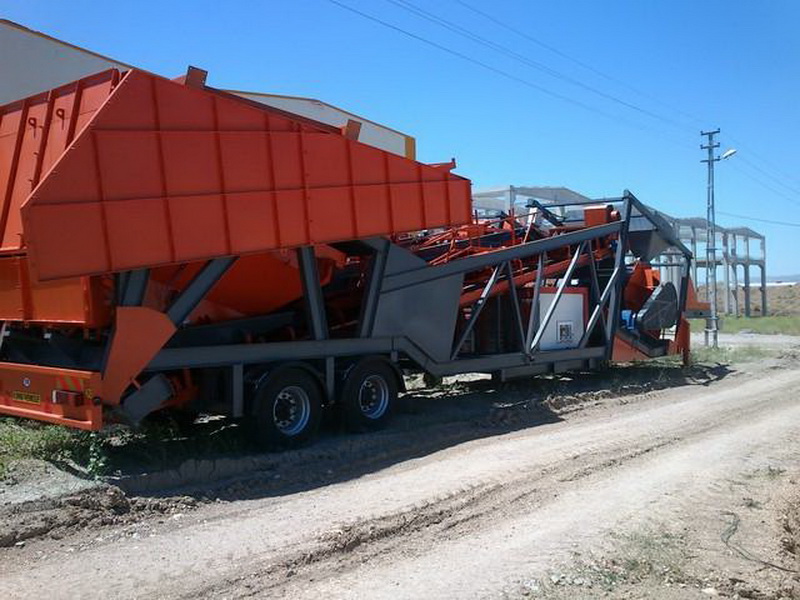

Photo Gallery
