Dump Tipper
Specifications
| SPECIFICATIONS | UN | T/M | T/M | T/M | T/M | T/M |
| MODEL | ||||||
|
Type
|
Semi Trailer
|
Semi Trailer
|
Semi Trailer
|
Semi Trailer
|
Semi Trailer
|
|
|
Product Type
|
S
|
S
|
S
|
S
|
L
|
|
|
Structure Type
|
U Type
|
U Type
|
U Type
|
U Type
|
U Type
|
|
|
Back Cover Mechanism
|
Mecha nic
|
Mecha nic
|
Mecha nic
|
Mecha nic
|
Mecha nic
|
|
|
Capacity m3
|
23
|
25
|
27
|
28
|
32
|
|
| DIMENSIONS | ||||||
|
Internal Length of Load Platform
|
mm
|
7152
|
7152
|
7152
|
7152
|
8200
|
|
Internal Width of Load Platform
|
mm
|
2235
|
2235
|
2235
|
2235
|
2235
|
|
Wall Height
|
mm
|
1500
|
1600
|
1700
|
1800
|
1800
|
|
Total Length
|
mm
|
8250
|
8250
|
8250
|
8250
|
9700
|
|
Total Width
|
mm
|
2530
|
2530
|
2530
|
2530
|
2530
|
|
Total Height
|
mm
|
3000
|
3100
|
3200
|
3300
|
3400
|
|
King Pin Height – Empty
|
mm
|
1260
|
1260
|
1260
|
1260
|
1260
|
|
King Pin Height – Loaded
|
mm
|
1230
|
1230
|
1230
|
1230
|
1230
|
|
Chassis End From King Pin
|
mm
|
730
|
730
|
730
|
730
|
730
|
|
Axle Distance
|
mm
|
4950
|
4950
|
4950
|
4950
|
5950
|
|
Axle Distance
|
mm
|
1310
|
1310
|
1310
|
1310
|
1310
|
|
Chassis End From Middle Axle
|
mm
|
2080
|
2080
|
2080
|
2080
|
2080
|
|
Platform End From Middle Axle
|
mm
|
2470
|
2470
|
2470
|
2470
|
2470
|
|
Damper Overthrow Angle
|
d
|
48
|
48
|
48
|
48
|
48
|
|
Gross weight of Vehicle
|
kg
|
39000
|
39000
|
39000
|
39000
|
39000
|
|
King Pin Capacity
|
kg
|
12000
|
12000
|
12000
|
12000
|
12000
|
|
Maximum Dump Axle Group Capacity
|
kg
|
27000
|
27000
|
27000
|
27000
|
27000
|
|
Weight of Empty Vehicle
|
kg
|
6750
|
6800
|
6850
|
6900
|
7700
|
CHASSIS :
- Manufactured with high welding technologies: St.52 Quality of steel with one section.
- Fixed to eachother with cross for challenging land conditions.
- 2″ King Pin DIN 74080 connected with bolts
- Pliable rear bumper
DAMPER BODY :
- Resistant to abrasions and strokes HARD0X-450 metal sheet
- Bottom metal sheet 6mm HARDOX-450*
- Side wall metal sheet 4mm HARDOX-450*
- Front wall metal sheet 4mm HARDOX-450*
- Back cover metal sheet 4mm HARDOX-450, cover can be opened from the top and it is hinge type.*
- There are consolidation travers at the bottom of the body.
- Body ribs are made of 5-6mm St.52.
- At the bottom of the body, there are overshoe battens against noise and abrasion.
AXLE ASSEMBLY :
- Strengthened square sections for Damper Applications, 3×9000 kgtechnical carrying capacity, Suspension Arc with single scissors
- Axle lifting system ” Effective to the 1st Axle “
APPLIANCES :
- Damper Brackets with 25 Ton capacity, Half moon bumper, Stair, Spare tires carrier, Side protection bars
PAINTING :
- After accomplishing sandblasting, 2 layers pimers and 2 layers last paint
TYRES :
- Wheels 6+1 385/65 R22.5, Rims 11.75×22.5
BRAKE :
- Brand ABS WABCO
HYDRAULIC SYSTEM :
- Telescopic cylinder with 4 stage, Lubricating oil pump, Hydraulic Valve, Damper Control Lever, Oil Tank and First Filling Oil
- High pressure-resistant pipes and Hose Facilities
ELECTRICAL SYSTEM :
- Compatable with EC and GGVS norms
- 24 V , side lamp
- Reflectors
- ABS Socket
- 2×7 Pin Socket (Brake and Electricity)

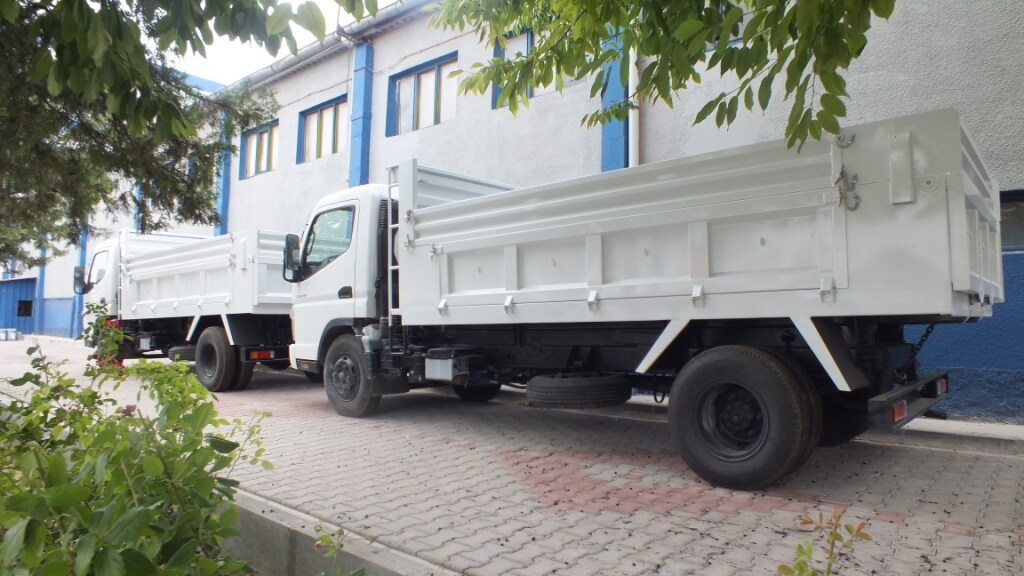

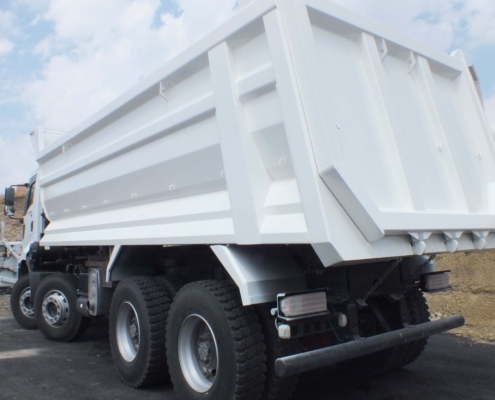

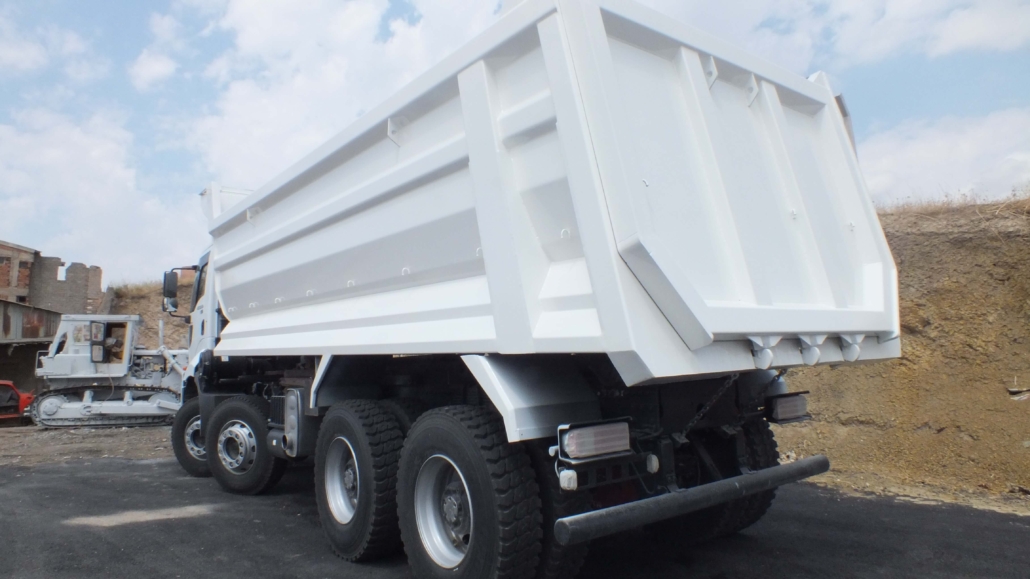

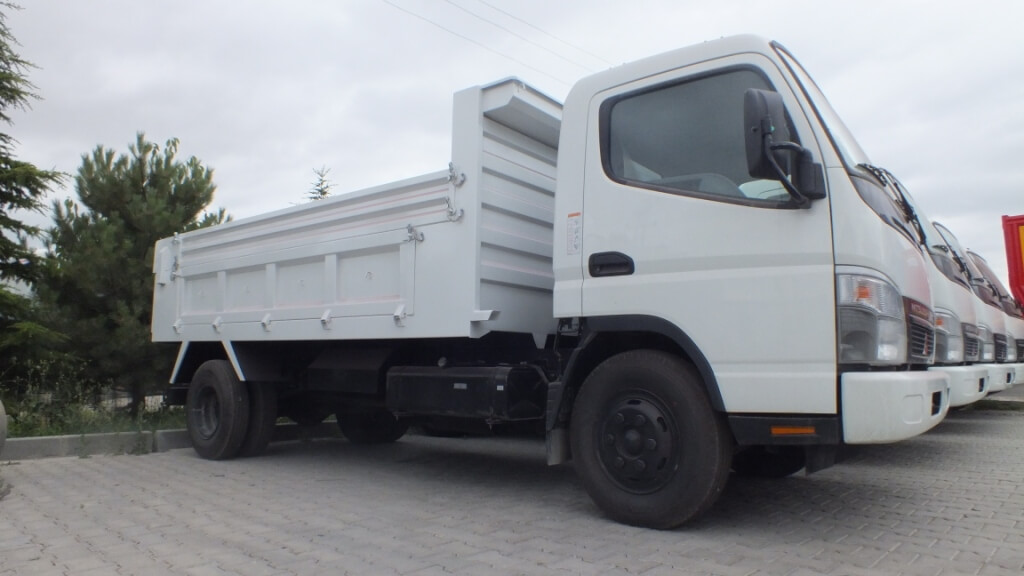

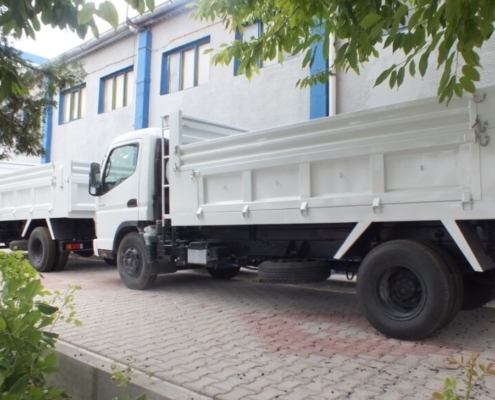

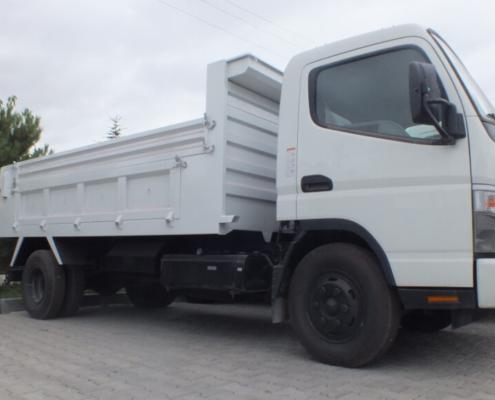

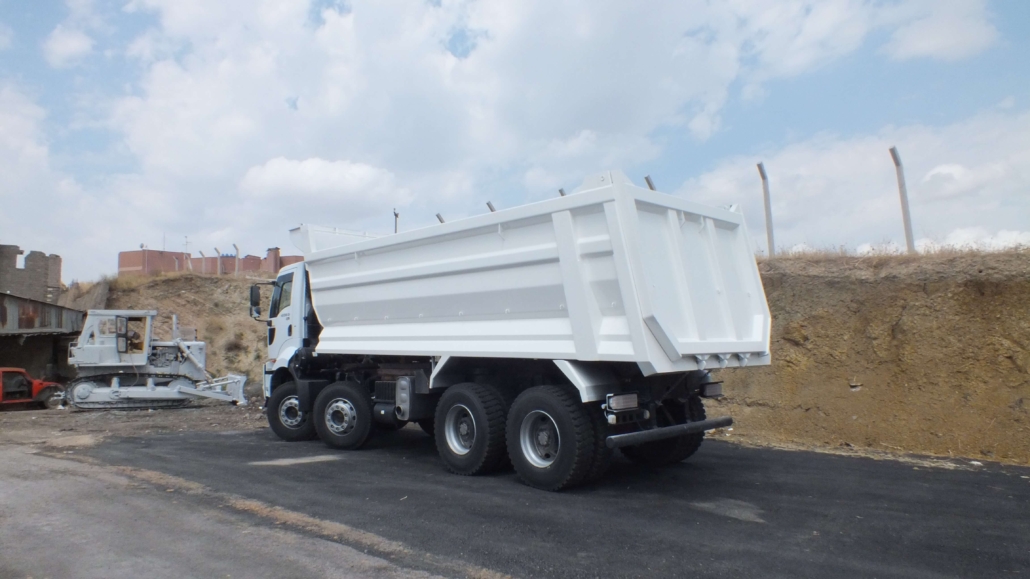

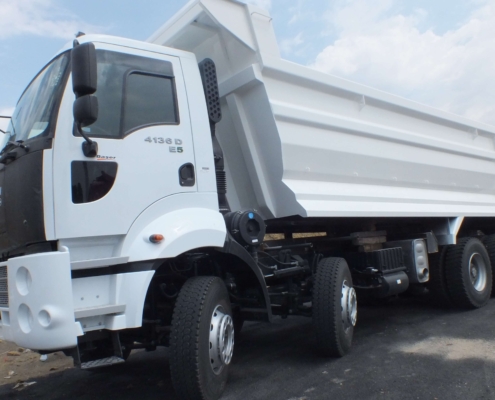

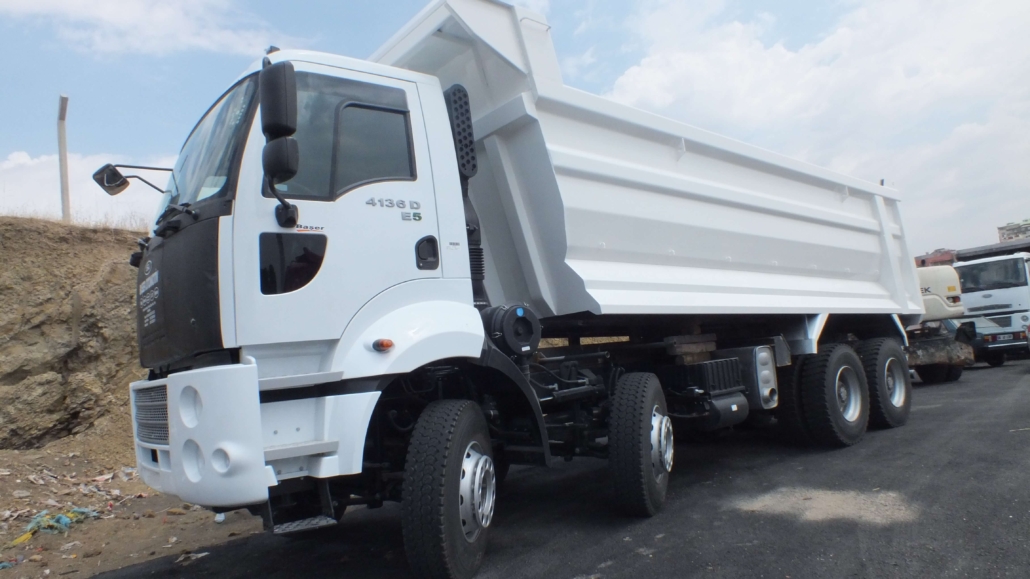

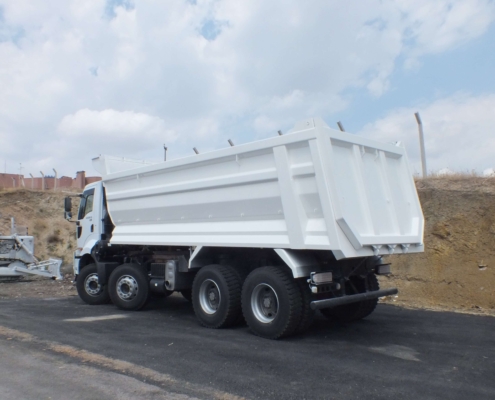

Photo Gallery
